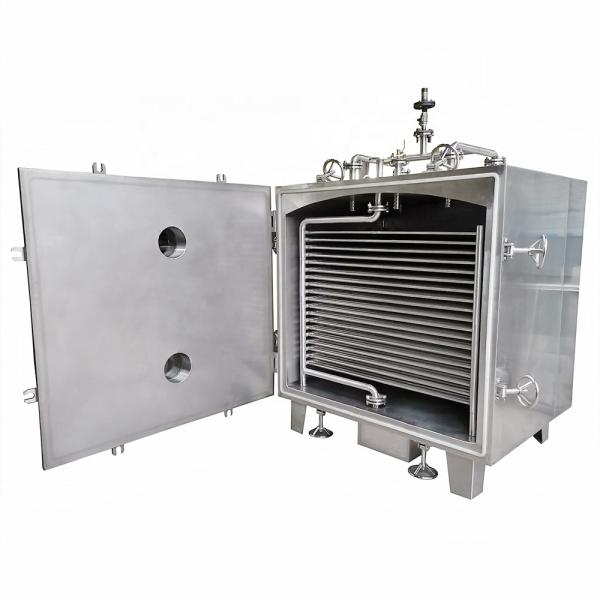

500KGS/Batch VTD Vacuum Tray Dryer Thermal Oil Heating

Principle of Environmental Friendly Automatic Functioning Fruit Dryer Machine

◆ _There are four kinds of heating resource for choice: steam, electricity, heat conducting oil, both steam and electricity.
◆ _The temperature (steam heating): 50-150℃ _.
◆ _The temperature (when using electricity and far-infrared): 50-350℃ _
◆ _The automatic control system or the computer control system is selectable.
◆ _Commonly used steam pressure 0.2-0.8 MPa (2-8kg/cm2).
◆ _Standard electric heating is 15kw for type CT-1,CT-C-1, easy flammable and explosive material is forbidden.
◆ _The special requirements should be indicated at the time of order.
◆ _The price for the non-standard oven should be consulted.
◆ _If the operation temperature is more than 140 ℃ _or less than 60 ℃ _, it should be indicated at the time of order.
◆ _The oven and baking tray made by our factory are uniform in the dimensions, and can be exchanged with each other.
◆ _Drying tray dimensions: 460*640*45mm
◆ _Explosive-proof motor and control cabinet as option.

Features of Environmental Friendly Automatic Functioning Fruit Dryer Machine

The laminar air flow passes through the drying trays and carry out the heat transmission to drying raw material. Fresh air is introduced, hot damp air is discharged continuously as the same time. In this way, Appropriate RH in dryer can be maintained. The ultimate advantage of dryer is that most hot air is re-cycled inside, it increases heat transmission and saves energy. It makes heat efficiency of dryer raise from 3-8% of traditional drying oven up to about 35-50%. The dryer adopt reinforced ventilation to decrease temperature difference. User can adjust air distributor in order to make the temperature difference at the best state.




Technical Parameters of Environmental Friendly Automatic Functioning Fruit Dryer Machine



Picture of Environmental Friendly Automatic Functioning Fruit Dryer Machine

After Sell Service

Service before sell:
----Provide relative technical data for help equipment selection
----Running pilot test
----Offering advice for equipment selection, material analysis
----Provide flow chart, basic drawing
----Provide technical design
Service in sell:
----Provide factory layout according to contract
----Manufacturing ordered equipment according to the related standard
---- A presentation report of manufacturing situation will be offered every 15days
---- Tracking and supervising in whole manufacturing and transporting period according to the contract requirement
---- Photo of wooden case will be offered, wooden case with standard shipping marks.
---- Photo of freight loading will be offered.
---- A record of detailed delivery list will be offered
---- A record of detailed freight loading list will be offered
---- All of wooden case will be marked serial number, all of attachments will be marked serial number, convenient for client's clearing
Service after sell:
----Send service engineer for help instruct installation.
----Send service engineer for running test at site and training the operator
----Help client for maintenance and repair
----Provide one year spare part
----Quality warranty for two years after sell

Packing & Delivery

500KGS/Batch vacuum tray dryer

VTD vacuum tray dryer

oil heating vtd dryer

500KGS/Batch VTD Vacuum Tray Dryer Thermal Oil Heating Images
